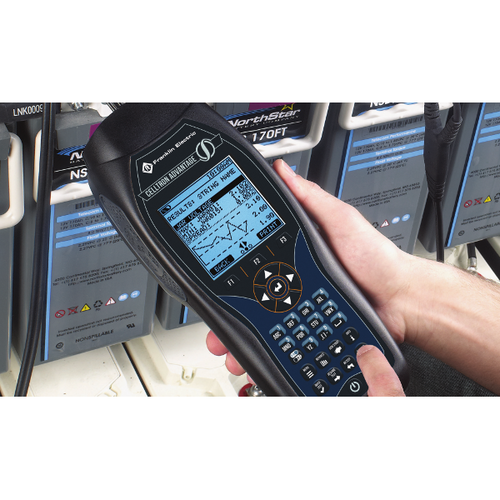

Franklin Electric Midtronics CAD-5500 Celltron Handheld Battery Tester Kit

(originally under the branding Midtronics)

The Midtronics CELLTRON ADVANTAGE is a user-customisable, economical battery management tool for service providers, operations, and maintenance teams.

With the capability to test Valve Regulated Lead Acid (VRLA) and Vented Lead Acid (VLA) batteries, the CELLTRON ADVANTAGE is capable of providing Battery Voltage down to one (1) volt and measures inter-cell and terminal connection resistance.

Celltron Advantage Battery Analyser Application:

  • Telecommunications
  • Uninterrupted Power Supplies (UPS)
  • Power Utility – NERC PRC-005 Solution
  • Commercial Generator Battery Start – NFPA 110 Solution

What comes with the CAD-5500 Kit (Gold Kit)?

  • Celltron Advantage Battery Analyser
  • Standard mode testing
  • Probe and cable set
  • USB drive for Excel data transfer
  • Battery pack (2)
  • Hard case
  • Multimeter module
  • Generator start module
  • In-unit trending
  • Discharge monitor
  • Probes, clamps, and cable
  • USB cable
  • CELLTRAQ EXPRESS
Specifications

Voltage Range
•       0.8 - 20.0 Volts DC

Conductance Range
•       100 - 19,990 Siemens

Test Data Storage
•       50 string locations of 240 test results
•       Stored internally
•       Unlimited transfer to USB drive

Accuracy
•       +/-2% across test range, voltage & conductance

Voltmeter Resolution
•       5mV<

User Programmable Functions
•       Preset values for over 250 battery types
•       Low voltage alarm setting
•       Low conductance warning
•       Low conductance failure
•       Test mode (pushbutton/auto start)

Cable Options
•       Dual contact clamps
•       Dual contact probes
•       Custom cables by quotation

Power Requirements
•       7.2V, 2300mAh, NiMH
•       Internal swappable battery & charger

LCD Display
•       2.97 in x 2.81 in (75.4 mm x 71.3mm)
•       128 x 128 pixels
•       40 degree viewing angle
•       LED backlight

Calibration:
Franklin Electric will work with each customer to establish a regular calibration program if it is required by their quality or other management system.

Keypad
•       Alpha-numeric
•       Stainless-steel dome
•       Polycarbonate overlay
•       1,000,000 actuations

Data Transfer
•       USB Flash Drive (Type A)
•       USB PC Interface (Type B)
•       Infra-red
•       Half-duplex IrDA protocol for optional printer

Environmental Operating Range
•       0 to +104°F (0 to +40°C)
•       95% relative humidity
•       Non-condensing

Storage Temperature
•       -4 to 180°F (-20 to 82°C)

Over Voltage Protection
•       Auto-reset disconnect
•       Reverse polarity protected

Housing Material
•       Acid-resistant ABS plastic
•       Santoprene™ overmold

Tester Dimensions
•       11in x 4in x 3in
•       279mm x 105mm x 80mm)

Tester Weight
•       2.6 lb (1 Kg)

Enhanced/Complete Kit Case Dimensions
•       19in x 15.5in x 7in
•       (485mm x 395mm x 180mm)

Enhanced/Complete Kit Case Weight
•       11 lb (5 Kg)

Chcem kúpiť
Cena bez DPH:
4 784,00 €
Cena s DPH:
5 740,80 €
Dostupnosť: Na dopyt
